СЕКЦИЯ РАСПРЕДЕЛИТЕЛЯ ОТВАЛ на мини-экскаватор Bobcat 225 508312001 И ВЫШЕ

1: Артикул: VALVE, VALVE NLA - W/Ref. 2-15 - Order 6658680 (1), 6658327 (1), 6658321 (4), 6658328 (2) & 11K000005B (2) - Was 6658323 - A
2: Артикул: HOUSING, HOUSING NLA
3: Артикул: SPOOL, SPOOL NLA
4: Артикул: O-RING, O-RING NSS - Included W/Ref. 16

Условия поставки:

Цена по запросу

Склад в СПб

Запчасти в наличии

Выездной сервис

Доставка тралом

О модели СЕКЦИЯ РАСПРЕДЕЛИТЕЛЯ ОТВАЛ

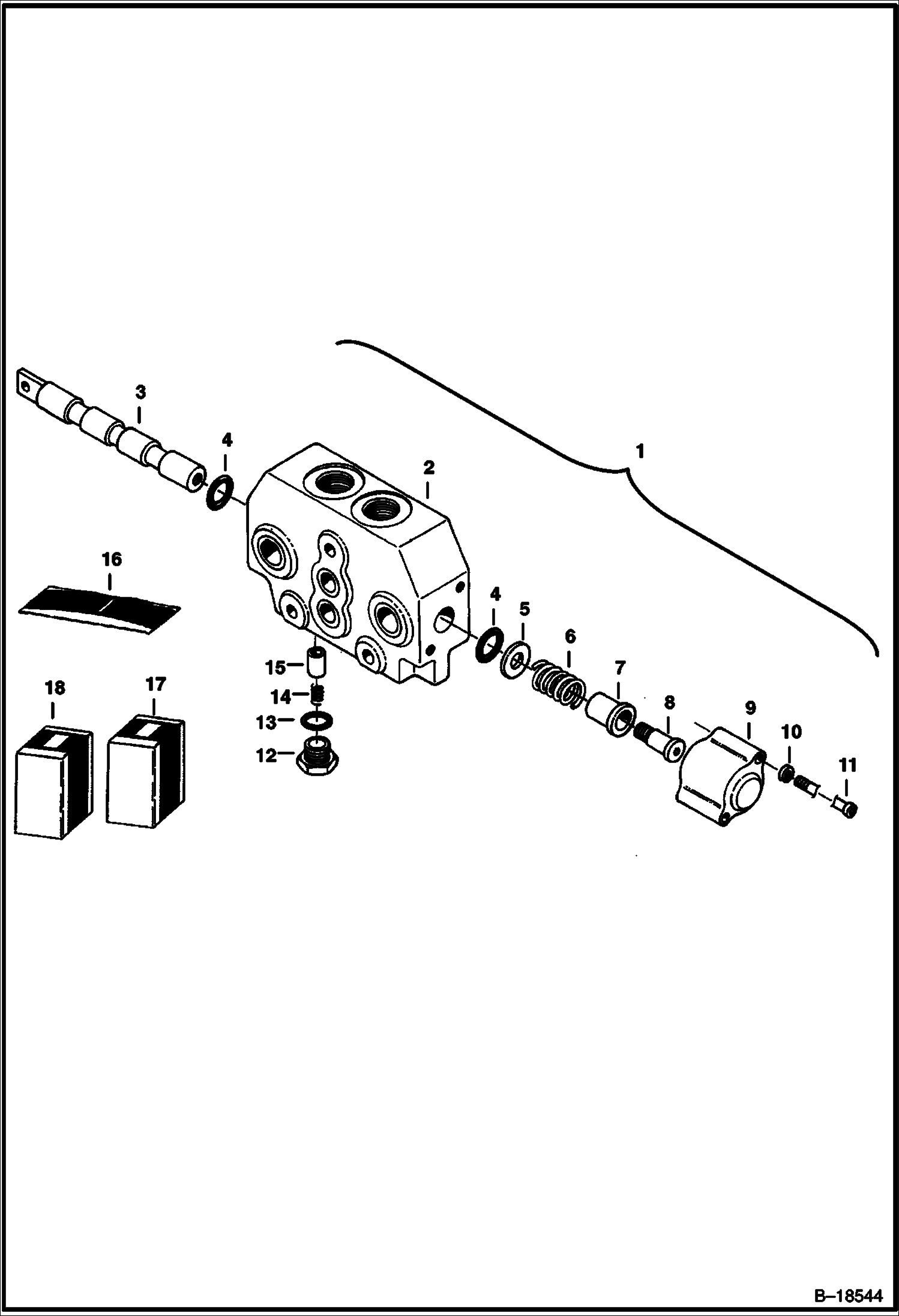

СЕКЦИЯ РАСПРЕДЕЛИТЕЛЯ ОТВАЛ на мини-экскаватор Bobcat 225 508312001 И ВЫШЕ

1	Артикул: VALVE, VALVE NLA - W/Ref. 2-15 - Order 6658680 (1), 6658327 (1), 6658321 (4), 6658328 (2) & 11K000005B (2) - Was 6658323 - A
2	Артикул: HOUSING, HOUSING NLA
3	Артикул: SPOOL, SPOOL NLA
4	Артикул: O-RING, O-RING NSS - Included W/Ref. 16
5	Артикул: WASHER, WASHER NSS - Included W/Ref. 17
6	Артикул: SPRING, SPRING NSS - Included W/Ref. 17
7	Артикул: SPACER, SPACER NSS - Included W/Ref. 17
8	Артикул: BOLT, BOLT NSS - Included W/Ref. 17
9	Артикул: END, END CAP NSS - Included W/Ref. 17
10	Артикул: 17E10, WASHER Included W/Ref. 17
11	Артикул: 6658339, BOLT Included W/Ref. 17
12	Артикул: 6656429, PLUG W/Ref. 13 - included W/Ref. 18
13	Артикул: O-RING, O-RING NSS - Included W/Ref. 16 & 18
14	Артикул: SPRING, SPRING NSS - Included W/Ref. 18
15	Артикул: POPPET, POPPET NSS - Included W/Ref. 18
16	Артикул: 6658337, SEAL KIT W/Ref. 4 & 13
17	Артикул: 6658338, SPRING KIT W/Ref. 5-11
18	Артикул: 6656433, KIT W/Ref. 12-15
