РЕГУЛИРУЮЩИЙ КЛАПАН (BOBCAT) на Bobcat 800s Bobcat 843 503760001 И ВЫШЕ

1: Артикул: VALVE, VALVE NLA - Ref. 2-49 - Order 6802997 - SEE NOTE - Was 6586289 - A
2: Артикул: SHORT, SHORT BLOCK NLA - Ref. 2-10, & 37 - SEE NOTE - Order Ref. 1 - Was 6537937 - A
3: Артикул: 6588165, SCREW Was 73G000410B - B
4: Артикул: 22E4, WASHER

Условия поставки:

Цена по запросу

Склад в СПб

Запчасти в наличии

Выездной сервис

Доставка тралом

О модели РЕГУЛИРУЮЩИЙ КЛАПАН (BOBCAT)

РЕГУЛИРУЮЩИЙ КЛАПАН (BOBCAT) на Bobcat 800s Bobcat 843 503760001 И ВЫШЕ

Техническая спецификация:

Габаритные размеры:

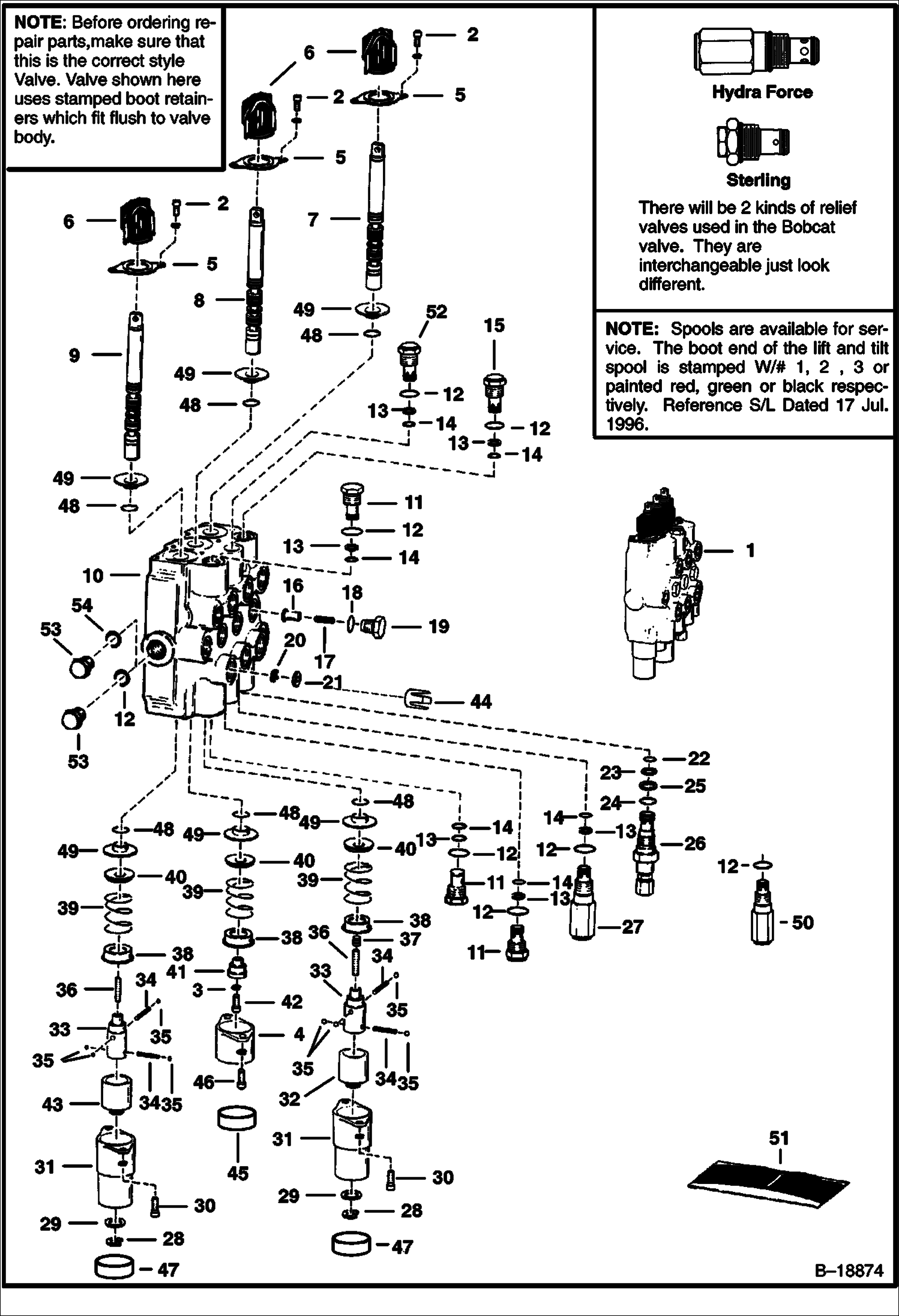

Схема габаритов РЕГУЛИРУЮЩИЙ КЛАПАН (BOBCAT)

Технические характеристики: РЕГУЛИРУЮЩИЙ КЛАПАН (BOBCAT)

1	Артикул: VALVE, VALVE NLA - Ref. 2-49 - Order 6802997 - SEE NOTE - Was 6586289 - A
2	Артикул: SHORT, SHORT BLOCK NLA - Ref. 2-10, & 37 - SEE NOTE - Order Ref. 1 - Was 6537937 - A
3	Артикул: 6588165, SCREW Was 73G000410B - B
4	Артикул: 22E4, WASHER
5	Артикул: BONNET, BONNET NLA - W/.25-- (6,35 mm) flange - Order 6587633 , 6662848 & 2 of 6588164 - Was 6592097 - A
6	Артикул: 7101345, BONNET, DETENT HYD VALVE W/.50-- (12,7 mm) flange - Was 7101345
7	Артикул: 6592123, RETAINER
8	Артикул: 6587763, BOOT Was 6583727 - A
9	Артикул: 6666582, SPOOL lift - #1 or red - SEE NOTE
10	Артикул: 6666583, SPOOL lift - #2 or green - SEE NOTE
11	Артикул: 6666584, SPOOL lift - #3 or black - SEE NOTE
12	Артикул: 6666585, SPOOL tilt - #1 or red - SEE NOTE
13	Артикул: 6666586, SPOOL tilt - #2 or green - SEE NOTE
14	Артикул: 6666587, SPOOL tilt - #3 or black - SEE NOTE
15	Артикул: 6592119, SPOOL auxiliary - SEE NOTE
16	Артикул: BODY, BODY NSS
17	Артикул: 6592720, PLUG W/Ref. 12-14
18	Артикул: 79K10, O RING 10
19	Артикул: 80K14, BACK-UP WASHER Was 73K000014B - B
20	Артикул: 58K014, O-RING 10 back-up washer required - Was 25K20016 - B
21	Артикул: 6677106, O-RING back up washer not required
22	Артикул: 6667549, VALVE anti-cavity - W/Ref. 12-14 - SEE NOTE - Was 6661345 - A
23	Артикул: 6592115, SEAT
24	Артикул: 6592117, SPRING, LOAD CHECK
25	Артикул: 79K8, O RING 10
26	Артикул: 6592116, NUT load check
27	Артикул: 6592111, ORIFICE .161/.154 (4,08/3,91 mm)
28	Артикул: 6593680, RETAINER
29	Артикул: O-RING, O-RING NSS
30	Артикул: WASHER, WASHER NSS - back-up
31	Артикул: O-RING, O-RING NSS
32	Артикул: WASHER, WASHER NSS - back-up
33	Артикул: RELIEF, RELIEF VALVE NLA - main relief - W/Ref. 22-25 - pressure preset at factory - Was 6649321 - A
34	Артикул: 7219324, VALVE, RELIEF W/ O-rings - pressure to be set in field - Was 6686360 - A
35	Артикул: 6599161, RELIEF VALVE See Note - W/Ref. 12-14
36	Артикул: 799119, RING
37	Артикул: 6592098, WASHER
38	Артикул: 6588163, SCREW 7/8-- (22,22 mm) - Was 69G000412B - B
39	Артикул: 29G416, BOLT 1-- (25,4 mm) - Was 6588982 - A
40	Артикул: BONNET, BONNET NLA - W/.25-- flange - Order 6589226 , 6631704 & 2 of 6588982 - Was 6592094 - A
41	Артикул: 6589226, COVER, END 0.63-- flange
42	Артикул: 6592096, SLEEVE lift
43	Артикул: 6587575, ADAPTER Was 6592099 - A
44	Артикул: 6592107, SPRING
45	Артикул: 6592105, BALL
46	Артикул: 6586918, SCREW Was 6535747 - A
47	Артикул: PLUG, PLUG NLA - Order 6596807 Plug & 54K020002B O-ring - Was 6592752 - A
48	Артикул: 6596807, PLUG plastic - 0.46-- long
49	Артикул: 54K20002, O-RING 10
50	Артикул: 6592100, COLLAR
51	Артикул: 6587580, SPRING Was 6592106 - A
52	Артикул: 7211397, WASHER, SPRING Was 6587523 - A
53	Артикул: 6592109, ADAPTER
54	Артикул: 6588166, SCREW Was 74G000416B - B
55	Артикул: 6593349, SLEEVE auxiliary
56	Артикул: 6532633, RESTRICTOR .157/.150 (3,98/3,81 mm)
57	Артикул: 6662848, CAP Use with 6587633 bonnet
58	Артикул: 69G414, BOLT Was 6588164 - A
59	Артикул: 6660644, CAP
60	Артикул: 6665089, SEAL See BTI374 lip seal - Was 6659554 - A
61	Артикул: 6646372, SEAL See BTI374 quad ring seal
62	Артикул: 6592103, BUSHING
63	Артикул: 6538466, BUSHING With part # stamped on face
64	Артикул: 6664373, VALVE Optional - Port relief & anti cav. - W/Ref. 12 - 2500 PSI - use in tilt cyl. base end port
65	Артикул: 6816251, KIT, SEAL See BTI374 - Ref. 6, 12-14, 18, 22-25, 37 & 48 - Was 6803606 - A
66	Артикул: 6816250, KIT, SEAL Ref. 30 & 45 - for one spool - Was 6803605 - A
67	Артикул: 6661328, SEAL KIT main relief seal - Ref. 22-25
68	Артикул: 6809425, SEAL KIT upper deck - Ref. 12-14 & 18 - Was 6586461 - A
69	Артикул: 6592720, PLUG W/Ref. 12-14
70	Артикул: 47K7, PLUG W/Ref. 12
71	Артикул: 47K9, PLUG W/Ref. 54
72	Артикул: 79K14, O RING 10
