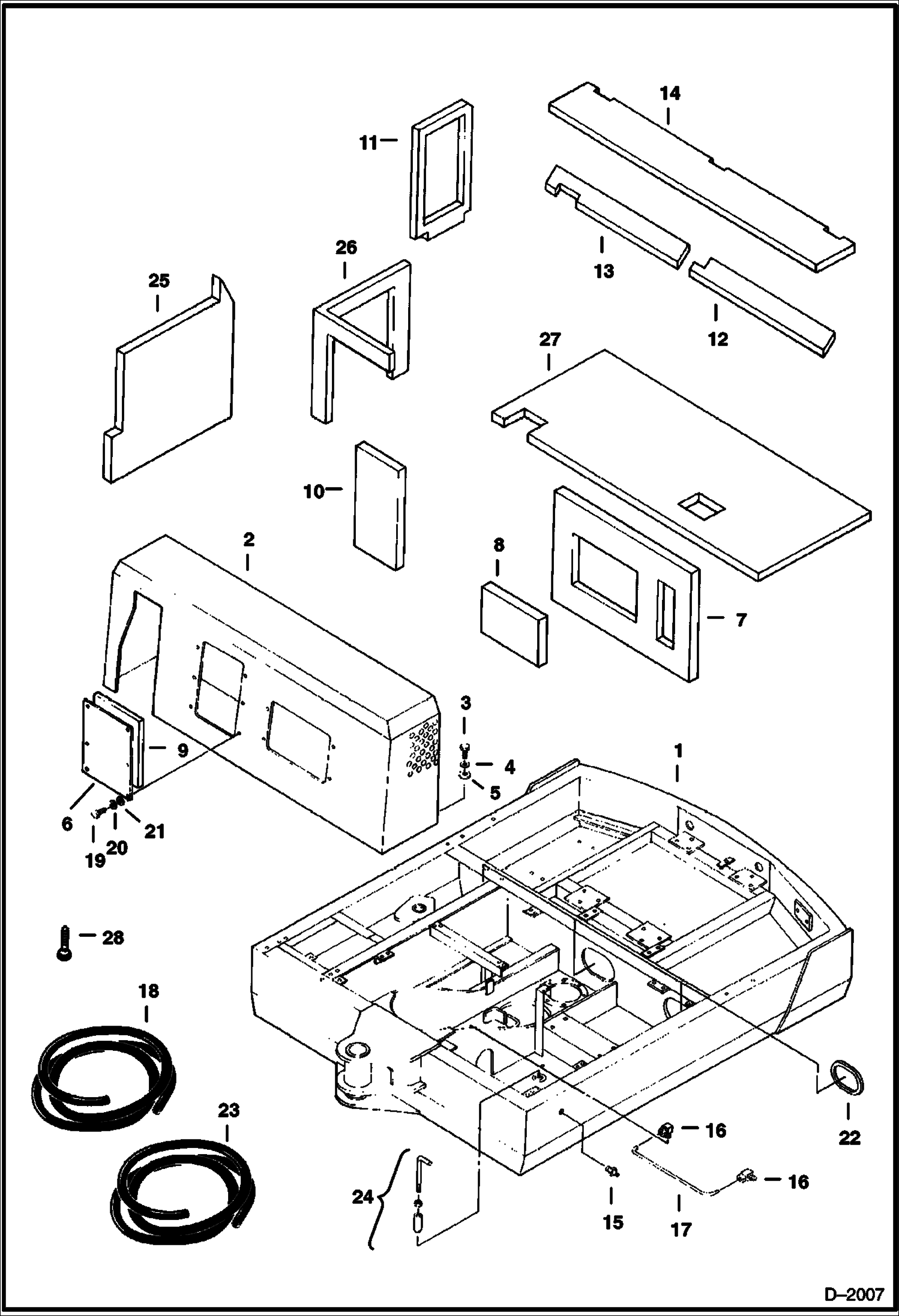

ПОВОРОТНАЯ РАМА И ЛИСТ НАСТИЛА на мини-экскаватор Bobcat 231 508911001 - 508911999

1: Артикул: 6536096, FRAME NLA - Was 6536096 NLA - Was 6536096 - A
2: Артикул: 6536094, COVER Engine panel NLA - Engine panel - Was 6536094 - A
3: Артикул: 1CM1225, BOLT
4: Артикул: 6EM120, WASHER

Условия поставки:

Цена по запросу

Склад в СПб

Запчасти в наличии

Выездной сервис

Доставка тралом

О модели ПОВОРОТНАЯ РАМА И ЛИСТ НАСТИЛА

ПОВОРОТНАЯ РАМА И ЛИСТ НАСТИЛА на мини-экскаватор Bobcat 231 508911001 - 508911999

Техническая спецификация:

Габаритные размеры:

Схема габаритов ПОВОРОТНАЯ РАМА И ЛИСТ НАСТИЛА

Технические характеристики: ПОВОРОТНАЯ РАМА И ЛИСТ НАСТИЛА

1	Артикул: 6536096, FRAME NLA - Was 6536096 NLA - Was 6536096 - A
2	Артикул: 6536094, COVER Engine panel NLA - Engine panel - Was 6536094 - A
3	Артикул: 1CM1225, BOLT
4	Артикул: 6EM120, WASHER
5	Артикул: 15EM120, WASHER
6	Артикул: 6535628, PANEL
7	Артикул: 6536196, INSULATION Fastens Inside of Engine Cover - Was 6536150 - A
8	Артикул: 6536194, INSULATION Fastens Inside of Engine Cover - Was 6535517 - A
9	Артикул: 6536193, INSULATION Fastens Inside of Engine Cover - Was 6535518 - A
10	Артикул: 6536195, INSULATION Fastens Inside of Engine Cover - Was 6536151 - A
11	Артикул: INSULATION, INSULATION NLA - Fastens Inside of Engine Cover - Order Ref. 26 - Was 6536152 - A
12	Артикул: INSULATION, INSULATION NLA - Fastens Inside of Engine Cover - Order Ref. 27 - Was 6536153 - A
13	Артикул: INSULATION, INSULATION NLA - Fastens Inside of Engine Cover - Order Ref. 27 - Was 6536154 - A
14	Артикул: INSULATION, INSULATION NLA - Fastens Inside of Engine Cover - Order Ref. 27 - Was 6536155 - A
15	Артикул: 6652970, GREASE FITTING Was 6533968 - A
16	Артикул: 6533967, ELBOW W/Nut & Sleeve NLA - W/Nut & Sleeve - Was 6533967 - A
17	Артикул: HOSE, HOSE NLA - 21-1/2-- (550 mm) long - Order Ref. 18
18	Артикул: HOSE, HOSE NLA - bulk - sold per foot - Was 6533969 - A
19	Артикул: 1CM825, BOLT
20	Артикул: 6EM80, WASHER, SPRING
21	Артикул: 15EM80, WASHER
22	Артикул: MOULDING, MOULDING NLA - 18-1/2-- (470 mm) long - Order Ref. 23
23	Артикул: 6512686, MOULDING bulk - sold per foot
24	Артикул: 6535515, PIN Frame locking
25	Артикул: INSULATION, INSULATION NLA - fastens inside of the engine cover - Was 6536197 - A
26	Артикул: 6536190, INSULATION Fastens Inside of Engine Cover
27	Артикул: 6536192, INSULATION Fastens Inside of Engine Cover
28	Артикул: 6535902, BOLT Alignment - Service tool for aligning swing bearing when upper structure has been removed from undercarriage
