КОМПЛЕКТ НИЖНИХ ПРОКЛАДОК

Лизинг от 0% первого взноса Заводская гарантия ЭПСМ готов

КОМПЛЕКТ НИЖНИХ ПРОКЛАДОК на мини-погрузчик Bobcat S250 A5GM11001 И ВЫШЕ, A5GN11001 И ВЫШЕ

1: Артикул: 6698579, KIT, GASKET ENG LOWER Ref. 2-22 - Also Order Ref. 23 & 24
2: Артикул: 6652751, GASKET See Illustration PISTON & CRANKSHAFT/ B27170
3: Артикул: 6684782, O-RING See Illustration OIL PAN/ B27169 - oil filler cap
4: Артикул: 6685923, GASKET See Illustration OIL PAN/ B27169 - oil filler flange

Условия поставки:

Цена по запросу

Склад в СПб

Запчасти в наличии

Выездной сервис

Доставка тралом

О модели КОМПЛЕКТ НИЖНИХ ПРОКЛАДОК

КОМПЛЕКТ НИЖНИХ ПРОКЛАДОК на мини-погрузчик Bobcat S250 A5GM11001 И ВЫШЕ, A5GN11001 И ВЫШЕ

Техническая спецификация:

Габаритные размеры:

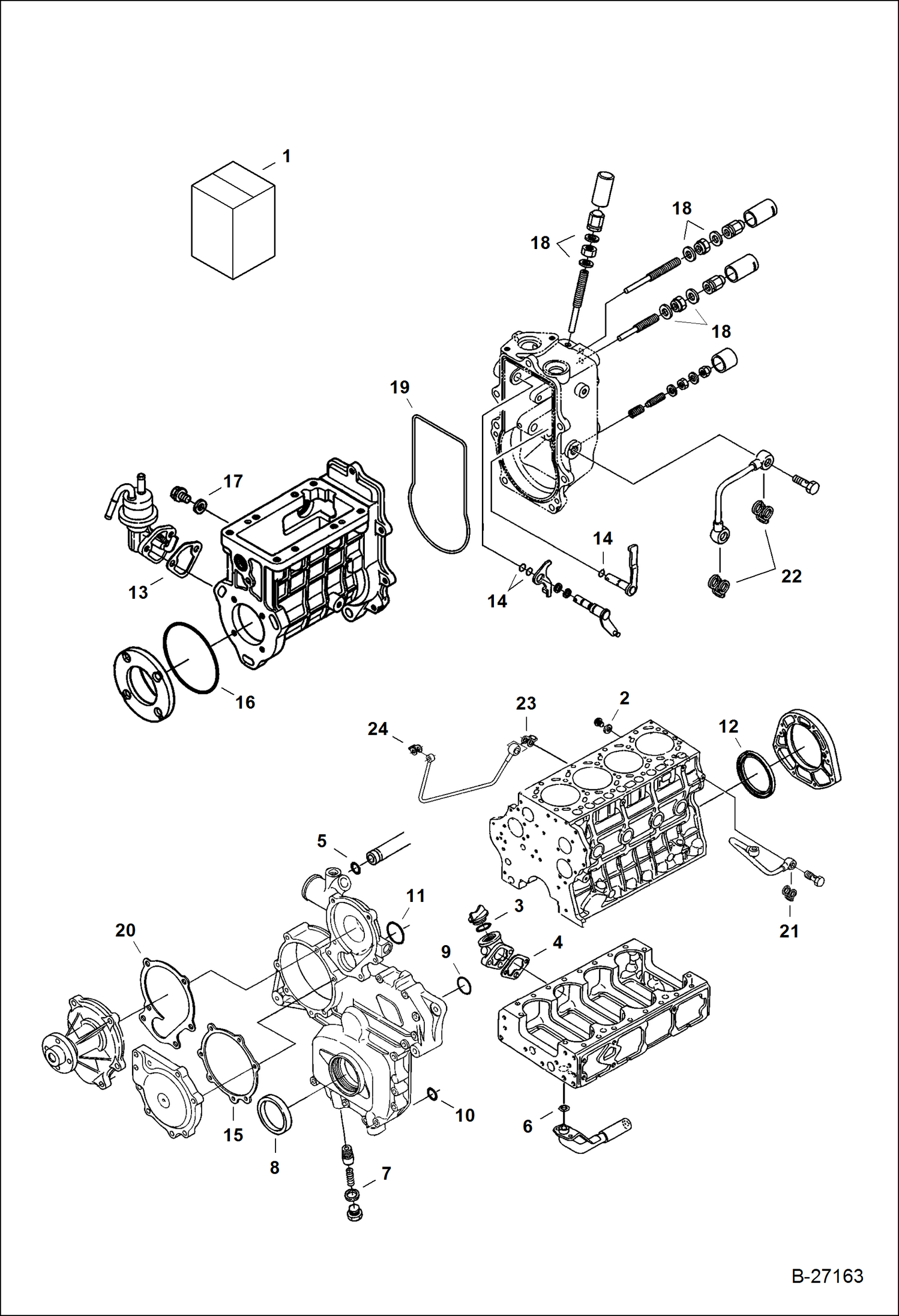

Схема габаритов КОМПЛЕКТ НИЖНИХ ПРОКЛАДОК

Технические характеристики: КОМПЛЕКТ НИЖНИХ ПРОКЛАДОК

1	Артикул: 6698579, KIT, GASKET ENG LOWER Ref. 2-22 - Also Order Ref. 23 & 24
2	Артикул: 6652751, GASKET See Illustration PISTON & CRANKSHAFT/ B27170
3	Артикул: 6684782, O-RING See Illustration OIL PAN/ B27169 - oil filler cap
4	Артикул: 6685923, GASKET See Illustration OIL PAN/ B27169 - oil filler flange
5	Артикул: 6685971, O-RING See Illustration OIL PAN/ B27169
6	Артикул: 6680661, RING,O See Illustration OIL PAN/ B27169
7	Артикул: 6670347, GASKET See Illustration FRONT COVER/ B27172
8	Артикул: 6680680, SEAL See Illustration FRONT COVER/ B27172 - front oil
9	Артикул: 6680681, RING,O See Illustration FRONT COVER/ B27172
10	Артикул: 6680682, RING,O See Illustration FRONT COVER/ B27172
11	Артикул: 6680855, RING,O See Illustration FRONT COVER/ B27172
12	Артикул: 6680705, SEAL See Illustration FRONT COVER/ B27172 - rear oil
13	Артикул: 7010133, GASKET, PUMP FUEL See Illustration FUEL INJECTION SYSTEM/ B27293 - Was 6670782 - B
14	Артикул: 6683023, O-RING See Illustration GOVERNOR/ B27176
15	Артикул: 6685948, GASKET See Illustration FUEL INJECTION SYSTEM/ B27293 - front cover
16	Артикул: 6698539, GASKET, PUMP INJ See Illustration FUEL INJECTION SYSTEM/ B27293
17	Артикул: 3974095, GASKET, METAL See Illustration FUEL INJECTION PUMP/ B27175
18	Артикул: 3974972, GASKET See Illustration GOVERNOR/ B27177
19	Артикул: 6680829, GASKET See Illustration FUEL INJECTION PUMP/ B27175 - governor housing
20	Артикул: 6680853, GASKET See Illustration WATER PUMP & THERMOSTAT/ B27173 - water pump
21	Артикул: 6689331, GASKET See Illustration TURBOCHARGER/ B27165
22	Артикул: 7000642, WASHER, SEALING COPPER See Illustration GOVERNOR/ B27176 - oil pipe - Was 6685962 - B
23	Артикул: 7000642, WASHER, SEALING COPPER See Illustration FUEL INJECTION SYSTEM/ B27293 - oil pipe - not in kit
24	Артикул: 6685498, GASKET See Illustration FUEL INJECTION SYSTEM/ B27293 - oil pipe - not in kit
