ХОДОВОЙ ГИДРОМОТОР

Лизинг от 0% первого взноса Заводская гарантия ЭПСМ готов

ХОДОВОЙ ГИДРОМОТОР на мини-экскаватор Bobcat 325 511820001 И ВЫШЕ

1: Артикул: MOTOR, MOTOR See Illustration TRAVEL MOTOR/ B18543 See BTIE-050 NLA - W/Ref. 2-44 - Also Ref. 1-15 on Ill. B-18543 - Was 6652841 - A
2: Артикул: HOUSING, HOUSING NSS
3: Артикул: 6670220, SEAL Order Ref. 45
4: Артикул: BEARING, BEARING NLA - Was 6655354 - A

Условия поставки:

Цена по запросу

Склад в СПб

Запчасти в наличии

Выездной сервис

Доставка тралом

О модели ХОДОВОЙ ГИДРОМОТОР

ХОДОВОЙ ГИДРОМОТОР на мини-экскаватор Bobcat 325 511820001 И ВЫШЕ

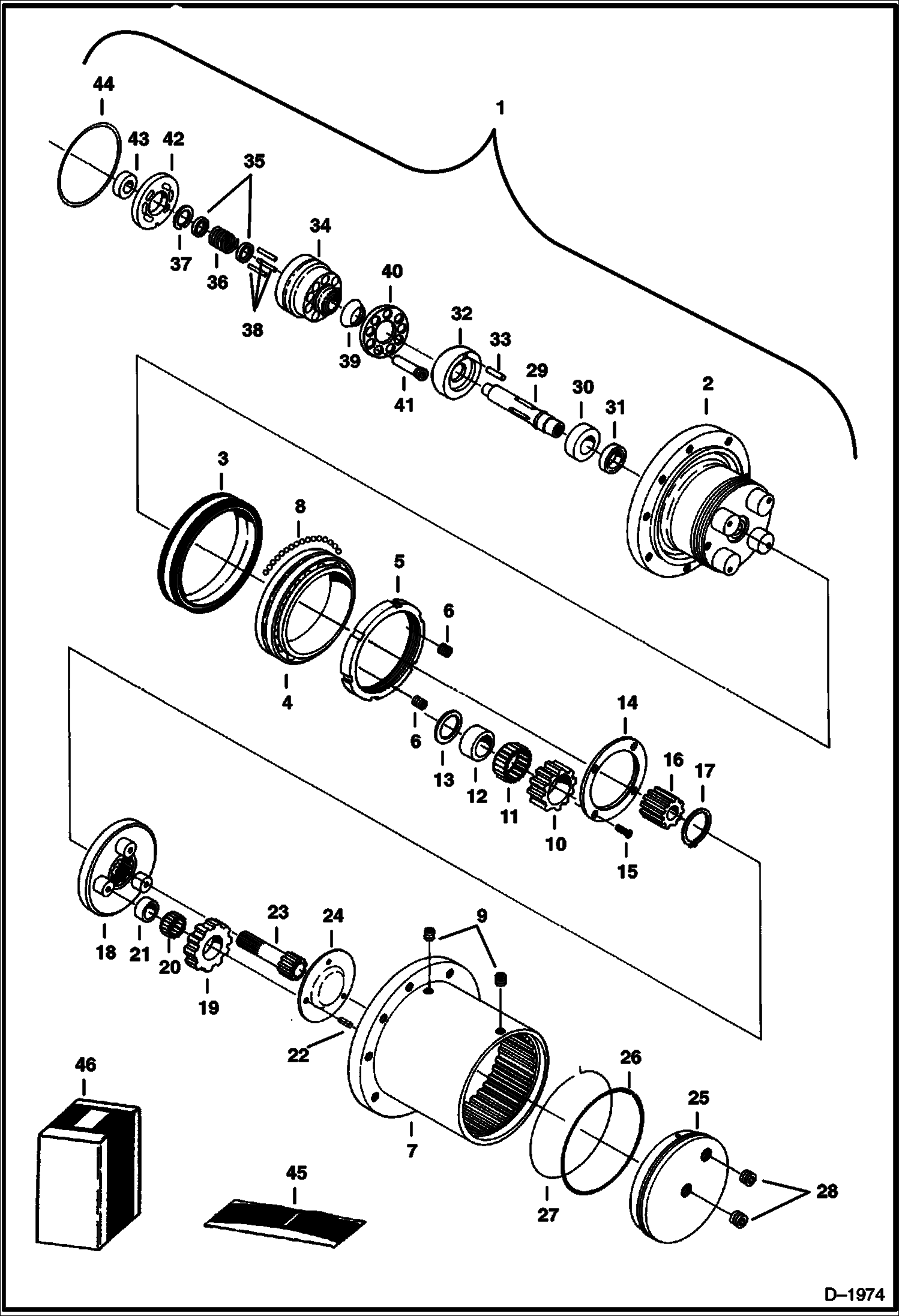

Техническая спецификация:

Габаритные размеры:

Технические характеристики: ХОДОВОЙ ГИДРОМОТОР

1	Артикул: MOTOR, MOTOR See Illustration TRAVEL MOTOR/ B18543 See BTIE-050 NLA - W/Ref. 2-44 - Also Ref. 1-15 on Ill. B-18543 - Was 6652841 - A
2	Артикул: HOUSING, HOUSING NSS
3	Артикул: 6670220, SEAL Order Ref. 45
4	Артикул: BEARING, BEARING NLA - Was 6655354 - A
5	Артикул: 6655355, NUT
6	Артикул: PLUG, PLUG NLA - Was 6653028 - A
7	Артикул: HOUSING, HOUSING NSS
8	Артикул: BALL, BALL NLA - Was 6653035 - A
9	Артикул: 6653036, PLUG
10	Артикул: GEAR, GEAR NLA - Was 6655357 - A
11	Артикул: BEARING, BEARING NLA - Was 6655358 - A
12	Артикул: COLLAR, COLLAR NLA - Was 6655359 - A
13	Артикул: WASHER, WASHER NLA - Was 6655360 - A
14	Артикул: 6655361, PLATE Thrust
15	Артикул: SCREW, SCREW NLA - Was 6655362 - A
16	Артикул: GEAR, GEAR NLA - Was 6655363 - A
17	Артикул: 6655364, SNAP RING
18	Артикул: 6655365, RETAINER
19	Артикул: GEAR, GEAR NLA - Was 6655366 - A
20	Артикул: BEARING, BEARING NLA - Was 6655367 - A
21	Артикул: RACE, RACE NLA - Was 6655368 - A
22	Артикул: PIN, PIN NLA - Was 6655369 - A
23	Артикул: GEAR, GEAR NLA - Was 6655370 - A
24	Артикул: PLATE, PLATE NLA - thrust - 1,8 mm (.07-- ) thick - Was 6655371 - A
25	Артикул: PLATE, PLATE NLA - thrust - 2,3 mm (.09--) thick - Was 6655372 - A
26	Артикул: PLATE, PLATE NLA - thrust - 2,8 mm (.11--) thick - Was 6655373 - A
27	Артикул: COVER, COVER NLA - Was 6655374 - A
28	Артикул: 6670233, O-RING Was 6655375 - A
29	Артикул: 6655376, WIRE lock
30	Артикул: 6653051, PLUG
31	Артикул: SHAFT, SHAFT NLA - Was 6653052 - A
32	Артикул: BEARING, BEARING NLA - Was 6653053 - A
33	Артикул: 6670236, SEAL Was 6653054 - A
34	Артикул: 6655377, PLATE
35	Артикул: PIN, PIN NLA - Was 6653056 - A
36	Артикул: BARREL, BARREL NSS - Cylinder
37	Артикул: 6653057, HOLDER
38	Артикул: 6653058, SPRING
39	Артикул: 6653059, SNAP RING
40	Артикул: 6653060, PIN
41	Артикул: 6653061, RETAINER
42	Артикул: 6655378, RETAINER
43	Артикул: PISTON, PISTON NSS
44	Артикул: 6653063, PLATE
45	Артикул: BEARING,, BEARING, BALL NLA - Was 6653064 - A
46	Артикул: 6670238, O-RING Was 6653065 - A
47	Артикул: 6670152, SEAL KIT See Illustration TRAVEL MOTOR/ B18543 - Ref. 8 & 12 - Also Includes Ref. 3, 26, 31 & 44 on this Illustration - Was 6669375 - A
48	Артикул: 6670153, SEAL KIT See Illustration TRAVEL MOTOR/ B18543 - Ref. 8 & 12 - Also Includes Ref. 26, 31 & 44 on this Illustration - Does not include Ref. 3
49	Артикул: 6658595, PISTON KIT Includes Ref. 34 & 41
