ГИДРАВЛИЧЕСКИЙ РЕГУЛИРУЮЩИЙ КЛАПАН на Bobcat 400s Bobcat 463 522111001 И ВЫШЕ, 522211001 И ВЫШЕ, 538911001 И ВЫШЕ, 539011001 И ВЫШЕ

1: Артикул: VALVE, VALVE NLA - D series coil compatible - Ref. 2-62 - Order 7299538 control valve & 7272732 coil - Use existing fittings from original control valve - Was 6813442 - A
2: Артикул: VALVE,, VALVE, CONTROL NLA - D series coil compatible - Ref. 2-62 - Order 7299538 control valve & 7272732 coil - Use existing fittings from original control valve - Was 6816418 - A
3: Артикул: VALVE,, VALVE, CONTROL NLA - D series coil compatible - Ref. 2-62 - Order 7299538 control valve & 7272732 coil - Use existing fittings from original control valve - Was 7133200 - A
4: Артикул: 7299538, VALVE, CONTROL E series coil compatible - Ref. 2-62

Условия поставки:

Цена по запросу

Склад в СПб

Запчасти в наличии

Выездной сервис

Доставка тралом

О модели ГИДРАВЛИЧЕСКИЙ РЕГУЛИРУЮЩИЙ КЛАПАН

ГИДРАВЛИЧЕСКИЙ РЕГУЛИРУЮЩИЙ КЛАПАН на Bobcat 400s Bobcat 463 522111001 И ВЫШЕ, 522211001 И ВЫШЕ, 538911001 И ВЫШЕ, 539011001 И ВЫШЕ

Техническая спецификация:

Габаритные размеры:

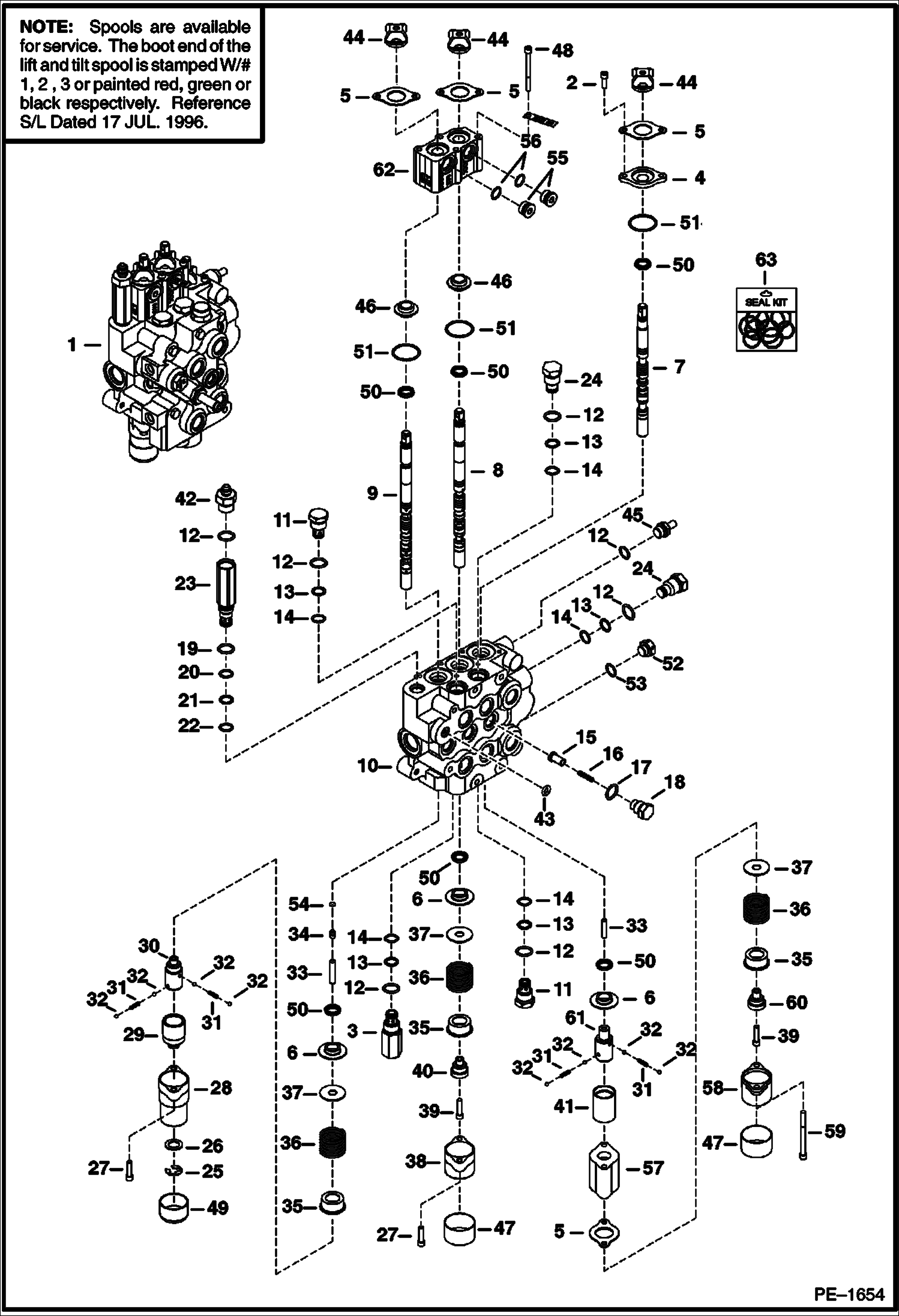

Схема габаритов ГИДРАВЛИЧЕСКИЙ РЕГУЛИРУЮЩИЙ КЛАПАН

Технические характеристики: ГИДРАВЛИЧЕСКИЙ РЕГУЛИРУЮЩИЙ КЛАПАН

1	Артикул: VALVE, VALVE NLA - D series coil compatible - Ref. 2-62 - Order 7299538 control valve & 7272732 coil - Use existing fittings from original control valve - Was 6813442 - A
2	Артикул: VALVE,, VALVE, CONTROL NLA - D series coil compatible - Ref. 2-62 - Order 7299538 control valve & 7272732 coil - Use existing fittings from original control valve - Was 6816418 - A
3	Артикул: VALVE,, VALVE, CONTROL NLA - D series coil compatible - Ref. 2-62 - Order 7299538 control valve & 7272732 coil - Use existing fittings from original control valve - Was 7133200 - A
4	Артикул: 7299538, VALVE, CONTROL E series coil compatible - Ref. 2-62
5	Артикул: VALVE, VALVE See Illustration BICS CONTROL VALVE/ PE1688 BICS
6	Артикул: 29G412, BOLT
7	Артикул: 6678552, VALVE relief - W/Ref. 12-14
8	Артикул: 6589565, BUSHING
9	Артикул: 6589564, RETAINER
10	Артикул: 6595663, BUSHING Seal Backup
11	Артикул: 6813753, SPOOL auxiliary
12	Артикул: 6815152, SPOOL, TILT Was 6674814 - A
13	Артикул: 6814511, SPOOL, LIFT Was 6674808 - A
14	Артикул: BODY, BODY NSS
15	Артикул: 6667549, VALVE anticav check - W/Ref. 12-14
16	Артикул: 79K10, O RING 10
17	Артикул: 80K14, BACK-UP WASHER Was 73K000014B - B
18	Артикул: 58K014, O-RING 10 back-up washer required
19	Артикул: 6677106, O-RING back-up washer not required
20	Артикул: 6592115, SEAT
21	Артикул: 6592117, SPRING, LOAD CHECK
22	Артикул: 79K8, O RING 10
23	Артикул: 6592116, NUT
24	Артикул: 73K17, BACKUP WASHER Was 80K000017B - A
25	Артикул: 58K017, O-RING 10
26	Артикул: WASHER, WASHER NLA - Was 80K000015B - A
27	Артикул: 58K015, O-RING 10
28	Артикул: VALVE,, VALVE, RELIEF 2 STAGE NLA - W/Ref. 19-22 - Order 7013580 relief valve, 6736035 tubeline, 15KB0606 fitting & 6736553 tee - Was 6680011 - A
29	Артикул: VALVE,, VALVE, RELIEF 2 STAGE NLA -W/Ref. 19-22 - .031-- orifice - Order 7013580 relief valve - Was 6683817 - A
30	Артикул: 7013580, VALVE, RELIEF 2 STAGE W/Ref. 19-22 - .052-- orifice
31	Артикул: 6592720, PLUG W/Ref. 12-14
32	Артикул: 799119, RING
33	Артикул: 6592098, WASHER
34	Артикул: 29G416, BOLT
35	Артикул: 6589226, COVER, END 0.63-- flange
36	Артикул: 6531270, SLEEVE, DETENT lift
37	Артикул: 6587575, ADAPTER
38	Артикул: 6592107, SPRING
39	Артикул: 6592105, BALL
40	Артикул: 6586918, SCREW
41	Артикул: 6596807, PLUG plastic - 0.46-- long
42	Артикул: 6592100, COLLAR
43	Артикул: 6587580, SPRING
44	Артикул: 7211397, WASHER, SPRING Was 6587523 - A
45	Артикул: 7101345, BONNET, DETENT HYD VALVE Was 6587633 - A
46	Артикул: 7102652, SCREW Was 30G000416B - B
47	Артикул: 6592109, ADAPTER
48	Артикул: 6813095, SLEEVE auxiliary
49	Артикул: 15KB0610, FITTING, HYD CONNECTOR W/Ref. 12
50	Артикул: 55K204, O RING 10
51	Артикул: 6587763, BOOT
52	Артикул: 6732357, PLUG W/Ref. 12
53	Артикул: 7202038, BUSHING, ALIGNMENT Also Order 82K019 alignment O-ring - Was 6805102 - A
54	Артикул: 6662848, CAP
55	Артикул: 29G444, BOLT
56	Артикул: 6660644, CAP
57	Артикул: 6683274, SEAL, SPOOL 10 spool - Was 6665846 - B
58	Артикул: 1K127, O-RING 10 Was 93K127 - A
59	Артикул: 6816855, PLUG W/Ref. 53 - Was 6534973 - A
60	Артикул: 79K7, O RING 10
61	Артикул: 54K20002, O-RING 10
62	Артикул: 90K6, PLUG W/Ref. 56 - tapered boss face - Was 90KN00006B - A
63	Артикул: 47K6, PLUG W/Ref. 56 - flat boss face
64	Артикул: 95K8, O-RING tapered boss face
65	Артикул: 79K8, O RING 10 flat boss face
66	Артикул: 6813097, BONNET
67	Артикул: 6813480, COVER
68	Артикул: 29G448, SCREW
69	Артикул: 6813098, ADAPTER
70	Артикул: 6813096, ADAPTER
71	Артикул: 7106751, BLOCK Was 6813449 - A
72	Артикул: 6809425, SEAL KIT Upper Deck - Ref. 12-14 & 17
73	Артикул: 6816252, SEAL KIT Spool - Ref. 33, 44, 48, 50, 51 & 54 - Was 6806941 - A
74	Артикул: 6661328, SEAL KIT Main Relief - Ref. 19-22
75	Артикул: 6816253, KIT, SEAL Complete Valve - Ref. 2, 12 -14, 17, 20, 21, 27, 43, 44, 48, 50, 51 & 53 - also Order 6816252 seal kit - Was 6809448 - A
