ЦИЛИНДР ПОВОРОТА

Лизинг от 0% первого взноса Заводская гарантия ЭПСМ готов

ЦИЛИНДР ПОВОРОТА на мини-экскаватор Bobcat 325 234111001 И ВЫШЕ, 234211001 И ВЫШЕ

1: Артикул: CYLINDER, CYLINDER NLA - Order 7169731 - Also Order Ref. 15-17 - Was 6809857 - A
2: Артикул: 7169731, CYLINDER, SWING Ref. 2-14, Also Order Ref. 15-17
3: Артикул: 6586721, HEAD
4: Артикул: 6809856, PISTON

Условия поставки:

Цена по запросу

Склад в СПб

Запчасти в наличии

Выездной сервис

Доставка тралом

О модели ЦИЛИНДР ПОВОРОТА

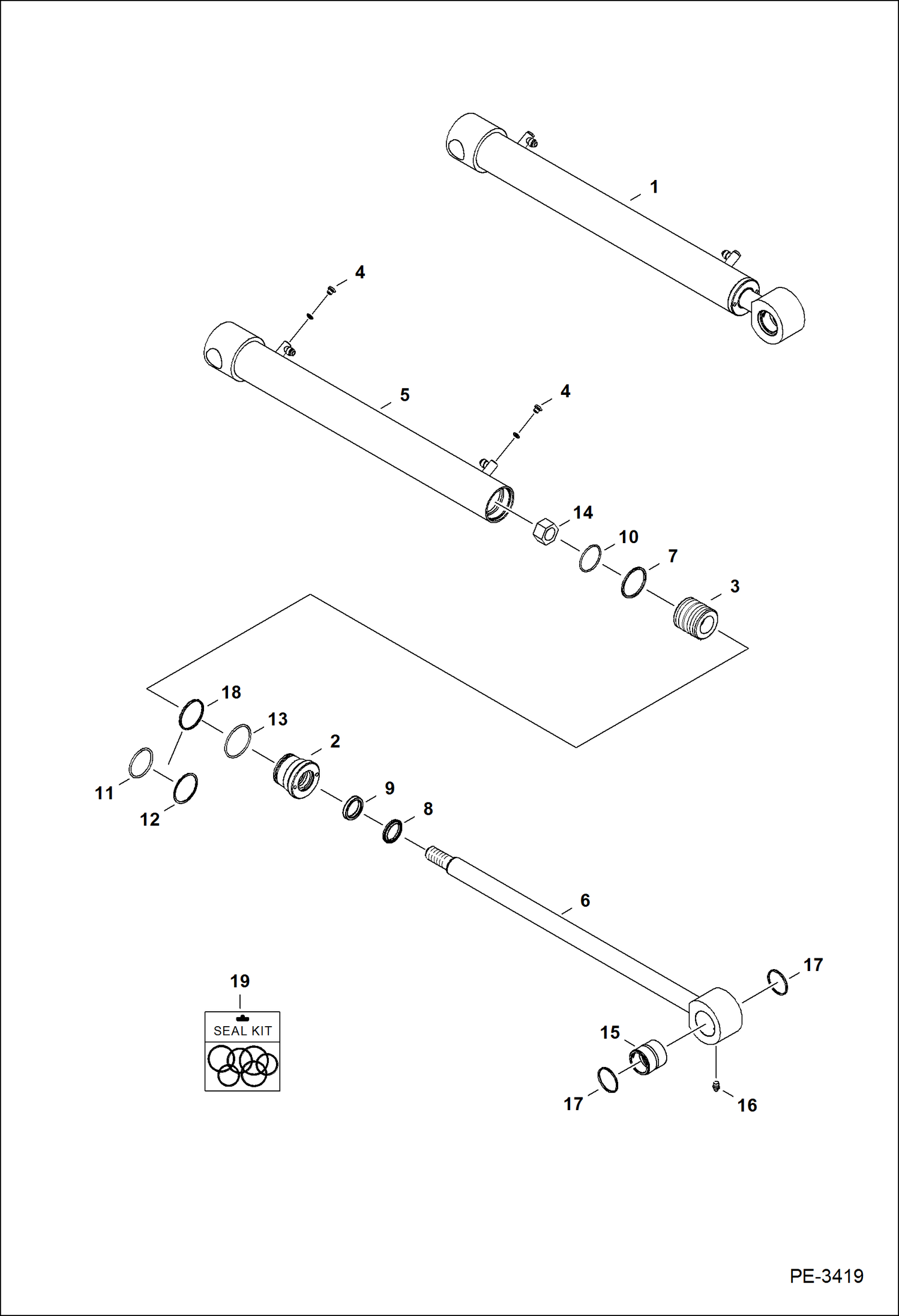

ЦИЛИНДР ПОВОРОТА на мини-экскаватор Bobcat 325 234111001 И ВЫШЕ, 234211001 И ВЫШЕ

1	Артикул: CYLINDER, CYLINDER NLA - Order 7169731 - Also Order Ref. 15-17 - Was 6809857 - A
2	Артикул: 7169731, CYLINDER, SWING Ref. 2-14, Also Order Ref. 15-17
3	Артикул: 6586721, HEAD
4	Артикул: 6809856, PISTON
5	Артикул: 90KV2, PLUG W/ 95K-3 o-ring allen - socket head - tapered boss face
6	Артикул: 6812170, PLUG W/ 75K-3 o-ring hex head- flat boss face
7	Артикул: 95K3, O-RING for tapered boss face
8	Артикул: 75K3, O-RING flat boss face - Was 73K000003B - D
9	Артикул: HOUSING, HOUSING NLA - 27.49-- (698 mm) long to bushing center - Order Ref. 1 - Was 6809494 - A
10	Артикул: 7169733, TUBE, CASE CYL 26.93-- (684 mm) long to bushing center - W/Ref. 4 & 13
11	Артикул: ROD, ROD NLA - 29.28-- (744 mm) long to bushing center - Order Ref. 1 - Was 6809497 - A
12	Артикул: 7169735, SHAFT, ROD CYL 29.96-- (761 mm) long to bushing center - Also Order Ref. 15-17
13	Артикул: 6536642, RING
14	Артикул: 6666543, WIPER, ROD CYL
15	Артикул: 6667325, SEAL
16	Артикул: 25K30130, O RING 10 Was 54K30130 - B
17	Артикул: 25K40204, RING,O Was 54K40204 - B
18	Артикул: 73K227, RING
19	Артикул: 82K229, ORING Was 58K229 - B
20	Артикул: 92D16, NUT
21	Артикул: 6808997, BUSHING
22	Артикул: 10H25, FITTING, GREASE 5
23	Артикул: 6660075, SEAL
24	Артикул: 7207224, SEAL, QUAD
25	Артикул: 7138015, KIT, SEAL Ref. 7-10, 13, 14, & 18 - Was 6809571 - A
